SIEMENS 6ES7314-5AE01-0AB0 SIMATIC S7-300, CPU 314 IFM COMPACT CPU WITH MPI, 16DI/16DO, 4AI/1AO , 2 X 40 PIN

Name: SIEMENS 6ES73145AE010AB0 SIMATIC S7300 CPU 314 IFM COMPACT CPU WITH MPI 16DI16DO 4AI1AO 2 X 40 PIN
Brand: SIEMENS
Price: 1 USD

Brand Name : SIEMENS

Model Number : 6ES7314-5AE01-0AB0

Certification : CE

Place of Origin : Germany

MOQ : 1

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 100PS

Delivery Time : 10-12Days

Packaging Details : 15,40 x 16,50 x 12,60CM

Cpu Type : Central processing unit

Mounting Options : Panel or VESA mount

Operating Temperature : 0-60°C

Processor : ARM Cortex-A8 600 MHz

Model : S7-300

Certifications : CE, UL, CSA

Communication Protocol : PROFINET

Memory : 128 KB

Protection Rating : IP20

Number Of Digital Inputs : 8

Programming Language : Ladder Logic

Temperature Range : -20°C to 60°C

Software : WinCC flexible or TIA Portal

Power Supply : 24V DC

Screen Size : 7 inches

Contact Now

SIEMENS 6ES7314-5AE01-0AB0 SIMATIC S7-300, CPU 314 IFM COMPACT CPU WITH MPI, 16DI/16DO, 4AI/1AO , 2 X 40 PIN

The Siemens 6ES7314-5AE01-0AB0 is a SIMATIC S7-300 CPU 314 IFM Compact CPU module. This CPU comes with integrated MPI (Multi-Point Interface) and offers a variety of digital and analog inputs and outputs.

**Product Description:**
- **Model:** 6ES7314-5AE01-0AB0
- **Product:** SIMATIC S7-300 CPU 314 IFM Compact CPU
- **Interface:** Integrated MPI (Multi-Point Interface)
- **Digital Inputs/Outputs:** 16 DI (Digital Inputs) / 16 DO (Digital Outputs)
- **Analog Inputs/Outputs:** 4 AI (Analog Inputs) / 1 AO (Analog Output)
- **Connector Type:** 2 x 40-pin

**Key Features:**
1. **Compact Design:** The IFM (Integrated Functions Module) design integrates various functions into a single module, saving space.
2. **Integrated MPI:** Allows for communication within the S7-300 system and with external devices.
3. **Digital Inputs/Outputs:** Provides 16 digital inputs and 16 digital outputs for handling binary signals.
4. **Analog Inputs/Outputs:** Includes 4 analog inputs and 1 analog output for processing continuous signals.
5. **Connector Type:** Equipped with 2 x 40-pin connectors for connecting to external devices or expansion modules.

**Applications:**
1. **Control Systems:** Suitable for controlling and monitoring processes in industrial automation applications.
2. **PLC Programming:** Enables the creation of control logic for automated processes.
3. **Analog Signal Processing:** Allows for the handling of analog signals for more precise control and monitoring.

For detailed installation instructions, configuration guidelines, and programming information for the 6ES7314-5AE01-0AB0 CPU module, refer to the product documentation provided by Siemens. Siemens' technical support can also provide assistance in integrating and utilizing this CPU within your specific automation setup.

Product
Article Number	6ES7314-5AE01-0AB0
Product Description	SIMATIC S7-300, CPU 314 IFM COMPACT CPU WITH MPI, 16DI/16DO, 4AI/1AO, 2 X 40 PIN, INTEGRATED 24V DC POWER SUPPLY, 24 KBYTE WORKING MEMORY
Product family	Not available
Product Lifecycle (PLM)	PM500:Discontinued Product or end of PLM & Support
PLM Effective Date	End of product lifecycle since: 01.10.2010
Notes	Product was deleted without replacement. If you need assistance please contact our local Siemens office
Price data
Price Group	2AP
List Price	Show prices
Customer Price	Show prices
Surcharge for Raw Material	see also metal factor (further details are available on the help page)
Metal Factor	see also metal factor (further details are available on the help page)
Delivery information
Export Control Regulations	ECCN : EAR99H / AL : N
Estimated dispatch time (Working Days)	1 Day(s)
Net Weight (kg)	0,954 Kg
Packaging Dimension	15,40 x 16,50 x 12,60
Package size unit of measure	CM
Quantity Unit	0 Piece
Packaging Quantity	1
Additional Product Information
EAN	4025515060529
UPC	Not available
Commodity Code	85371091
LKZ_FDB/ CatalogID	ST9-E5
Product Group	4302
Group Code	R111
Country of origin	Germany

SIEMENS 6ES7314-5AE01-0AB0 SIMATIC S7-300, CPU 314 IFM COMPACT CPU WITH MPI, 16DI/16DO, 4AI/1AO , 2 X 40 PIN

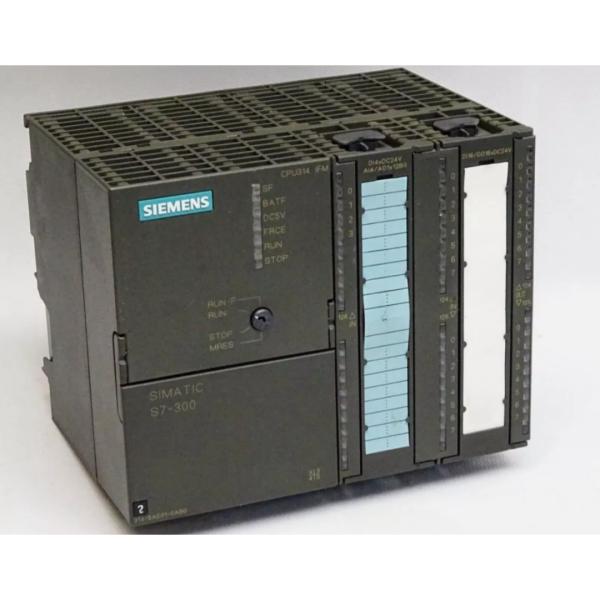

SIEMENS 6ES7314-5AE01-0AB0 SIMATIC S7-300, CPU 314 IFM COMPACT CPU WITH MPI, 16DI/16DO, 4AI/1AO , 2 X 40 PIN Images
