SIEMENS 6ES7223-1PL32-0XB0 SIMATIC S7-1200, DIGITAL I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, SINK/SOURCE, 16 DO, RELAY 2 A

Brand Name : SIEMENS

Model Number : 6ES7223-1PL32-0XB0

Certification : CE

Place of Origin : Germany

MOQ : 1

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 100PS

Delivery Time : 10-12Days

Packaging Details : 8,80 x 11,00 x 8,50CM

Programming Software : STEP 7 Basic V14

Model : SM1222 16 X RELAY

Analog Outputs : 2 (0-10 V DC)

Number Of Digital Inputs : 8/16/24/32/40

Ambient Temperature : -25 to +60 °C

Integrated Safety : Yes

Certifications : CE, UL, cUL, FM, RCM, KC

Digital Outputs : 16 (24 V DC)

Integrated Diagnostics : Yes

Mounting : Rack or DIN Rail

Integrated Motion Control : Yes

Programming Languages : Ladder Logic, Function Block Diagram, Structured Text

Cpu : 1212C, 1211C,1214C, 1215C, 1217C

Integrated Hmi : Yes

Cpu Type : S7-1200

Contact Now

SIEMENS 6ES7223-1PL32-0XB0 SIMATIC S7-1200, DIGITAL I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, SINK/SOURCE, 16 DO, RELAY 2 A

The **Siemens 6ES7223-1PL32-0XB0** is a **Simatic S7-1200** Digital Input/Output module, specifically the SM 1223 variant. This module combines 16 digital inputs and 16 digital outputs in one unit.

Here are the key specifications for this Digital I/O module:

- **Product Code:** 6ES7223-1PL32-0XB0
- **Product Name:** SIMATIC S7-1200 Digital I/O SM 1223
- **Module Type:** Digital Input/Output module
- **Digital Inputs:** 16 inputs at 24 V DC, sink/source configurable
- **Digital Outputs:** 16 outputs with relay contacts, capable of handling up to 2 A
- **Input Type:** 24 V DC
- **Output Type:** Relay contacts

### Overview:
- **Module Type:** Digital Input/Output module suitable for the S7-1200 series
- **Digital Inputs:** Provides 16 digital inputs that can be configured as sink/source at 24 V DC
- **Digital Outputs:** Offers 16 digital outputs with relay contacts capable of handling up to 2 A
- **Input/Output Configuration:** Combines both digital input and output capabilities in one module
- **Application:** Ideal for applications requiring a larger number of digital input and output signals with relay switching

The Siemens 6ES7223-1PL32-0XB0 SM 1223 Digital Input/Output module is a reliable component designed for industrial automation applications within the Simatic S7-1200 series. With its combination of 16 digital inputs and 16 digital outputs featuring relay contacts, this module is suitable for applications where a larger number of input and output signals need to be managed within the same unit using a 24 V DC power supply.

Product
Article Number 6ES7223-1PL32-0XB0
Product Description SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, Sink/Source, 16 DO, relay 2 A
Product family SM 1223 digital input/output modules
Product Lifecycle (PLM) PM300:Active Product
Price data
Price Group 212
List Price Show prices
Customer Price Show prices
Surcharge for Raw Material see also metal factor (further details are available on the help page)
Metal Factor see also metal factor (further details are available on the help page)
Delivery information
Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 1 Day(s)
Net Weight (kg) 0,319 Kg
Packaging Dimension 8,80 x 11,00 x 8,50
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 6940408102019
UPC 887621206949
Commodity Code 85389091
LKZ_FDB/ CatalogID ST72
Product Group 4508
Group Code R132
Country of origin Germany

SIEMENS 6ES7223-1PL32-0XB0 SIMATIC S7-1200, DIGITAL I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, SINK/SOURCE, 16 DO, RELAY 2 A


Product Tags:

16 DO SIMATIC S7-1200



16 DI SIMATIC S7-1200



SIEMENS 6ES7223-1PL32-0XB0


Wholesale SIEMENS 6ES7223-1PL32-0XB0 SIMATIC S7-1200, DIGITAL I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, SINK/SOURCE, 16 DO, RELAY 2 A from china suppliers

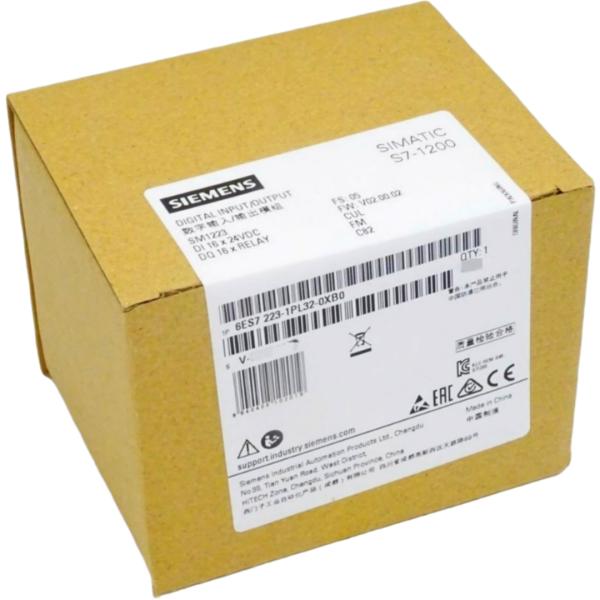

SIEMENS 6ES7223-1PL32-0XB0 SIMATIC S7-1200, DIGITAL I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, SINK/SOURCE, 16 DO, RELAY 2 A Images
